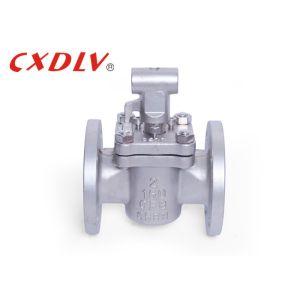

    Flange End Lubricated Sleeved Plug Valves Stainless Steel Soft Sealing

    Ask Lasest Price
    Brand Name : CXDLV
    Model Number : X43
    Certification : ISO9001:2008 CE
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 7-30 days
    • Product Details
    • Company Profile

    Flange End Lubricated Sleeved Plug Valves Stainless Steel Soft Sealing

    Flange End Lubricated Sleeved Plug Valves Stainless Steel Soft Sealing

    Specifications

    - Design and manufacturing : API599, API6d
    - Structure length standard : ASME b16.10
    - Connection flange standard : ASME b16.5
    - Pressure temperature rating : ASME b16.34
    - Inspection & testing : API598.API6d


    Application

    The sealing of the ferrule plug valve is achieved by the sealing surface around the ferrule. Unique 360° metal lip protection fixed ferrule, the valve has no cavity to accumulate the medium, the metal lip provides self-cleaning effect when the cock is rotated, suitable for viscous and easy scaling conditions, two-way flow, installation more convenient. The card sleeve soft sealing plug valve is suitable for the petroleum, chemical, pharmaceutical, fertilizer and electric power industries with the nominal pressure CLASS150~CLASS900 and the working temperature of -29°C~180°C.


    Feature


    1. According to the use temperature and working medium, self-lubricating material bushings such as F4, F46, PVDF, PP, PO, PE, etc. can be used for lubrication. The sealing friction coefficient is small during the whole working process, the plug body is flexible, and the service life is long. .
    2. Valve body inlet and outlet end window design and double channel groove seal ring structure. During the rotation process of the cock, the sealing ratio between the seal pairs is gradually changed until it reaches the fully open or fully closed position, resulting in sufficient sealing. Compared with the pressure, the sealing pair reaches zero leakage.


    Package&Delivery

    Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
    Delivery Details: according to the order, 7~60days

    FAQ

    Q: Are you trading company or manufacturer ?
    A: We are a factory.
    Q: How long is your delivery time?
    A: According to the order,7~60days.
    Q: Do you provide samples ? is it free or extra ?
    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
    Q: What is your terms of payment ?
    A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
